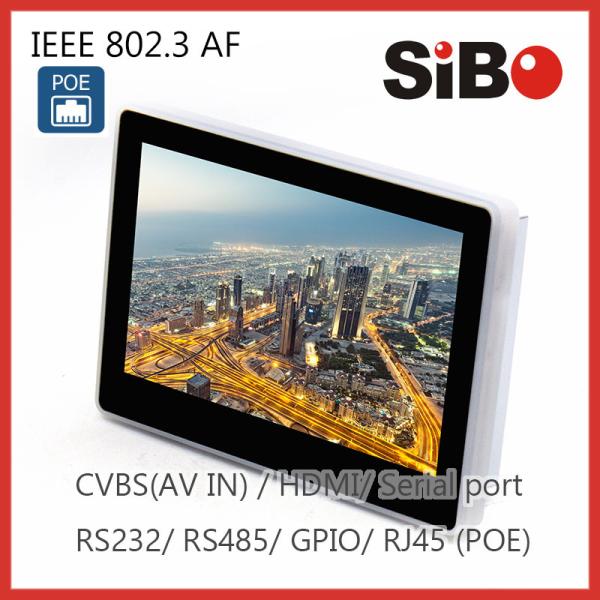

7 Inch RS232 HMI Android Touch Panel PC
The SIBO Android Tablet PC can directly be embedded into a wall, be placed on wall / or desktop with rich Android application for home application and so on...
SIBO Q896 In Wall Android RS232 Table
For smart home and control
- IPS Screen (G+G glass)
- Android OS
- In wall / On wall version
- CVBS , HDMI, Serial port , GPIO , Uart interface
- No buttons design
- Slim Body with 3 Brackets for wall mounting
- Camera & Mic
- Support ROOT permissions for private application
- No battery design
- Auto power on
- 12V DC / 24V DC available for power
- Auto web application (one web page can be showed only on the screen)
- POE feature (IEEE 802.3 af)
| Model Number | Q896 |
| Hardware Specs | Solution | Allwinner Dual-Core Cortex™-A7 CPU |
| CPU | ARM Cortex A7 Dual-Core, 1.2Ghz |
| Display | 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2 |
| RAM | 1GB |
| Nand Flash | 4GB |
| |
| Software Feature | System | Google Android 4.2.2 |
| Video | H.264 2160p video decoding,
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc.
H.264 High Profile 1080p@30fps or 720@60fps encoding
3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported
Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols |
| Audio | Integrated 3W Amplifier (No Speakers, Only Speaker connector) |
| Language | Support multi-languages |
| |
| Interfaces | Back | Ethernet Interface(RJ45) |
| HDMI Out |
| USB Socket |
| CVBS IN |
| DC IN Power Terminal |
| UART, IO, 3W AMP OUT Available |
| |
| Network | WIFI+BLUETOOTH | WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 |
| | LAN Port | Ethernet RJ45 |
| |
| Power Supply | DC IN | DC 9V - 36V |
| |
| Boot Up | Auto Boot | Auto Boot Up When Power Supplies |
| Software | Auto Run Web App |
Built in HDMI (standard ) jack, CVBS port , Standard RJ45 port, USB (standard) , Standard serial port (baud rate from 1200 to 115200) ,GPIO In and Out
It is Wall Tablet , no battery , no buttons (with auto power on feature), it is Serial port Tablet , It is a GPIO tablet, all good features for home automation and so on...
A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.
Q896 INTERFACE:
1.HDMI OUT
2.CVBS IN
3.DC IN (9-36V)
4.RJ45
5.USB
6.UART, IO , 3W AMP OUT
7.SLOTS FOR MOUNTING
8.SCREWS FOR MOUNTING
Tablet with RS232
In wall installation:
Welcome OEM orders
|
|
